Overview
PAC steel reinforced lintels are supplementary components used in conjunction with the blocks and are widely used over portals, doors and windows. It has been proven that using PAC lintels can accelerate the construction time and reduce the labor cost compared with traditional methods. Composed of the same raw material as PAC Blocks, PAC Lintels ensures the wall is solid and free from material incompatibility with AAC Block and avoids thermal bridging combined with a uniform substrate for rendering. The size of PAC lintels can be customized in line with the opening and wall thickness up to a maximum clear span of 3000mm. The reinforcement rebar is the key factor of the PAC lintel and guarantees the correct load bearing capacity. Various types of lintels are available depending on the purpose.
Technical Specification
|
PAC Lintel |
| Density grade |
PAC - 4 |
PAC - 6 |
| Mean Compressive Strength (MPa) |
5 |
7.5 |
| Mean dry density (kg/m3) |
500 - 600 |
600 - 700 |
| Mean working density (kg/m3) |
600 - 700 |
700 - 800 |
| Dimensional tolerance (mm) |
±3.0 |
| Dry thermal conductivity [ W/(m2 k)] |
≤0.13 |
≤0.15 |
| Dry shrinkage (mm/m) |
≤0.02% |
Product Dimensions and Packing
| Design Load (KN/M) |
Maximum Span of Lintels with different loads and thickness ( 200 mm Height) |
| 100 |
150 |
200 |
250 |
300 |
| 5 |
1100 |
1900 |
2700 |
3000 |
4500 |
| 10 |
- |
800 |
1100 |
1500 |
1900 |
| 15 |
- |
- |
600 |
900 |
1100 |
| Design Load (KN/M) |
Maximum Span of Lintels with different loads and thickness ( 250 mm Height) |
| 100 |
150 |
200 |
250 |
300 |
| 5 |
1500 |
2500 |
3500 |
4500 |
5500 |
| 10 |
600 |
1000 |
1500 |
2000 |
2500 |
| 15 |
- |
600 |
900 |
1150 |
1500 |

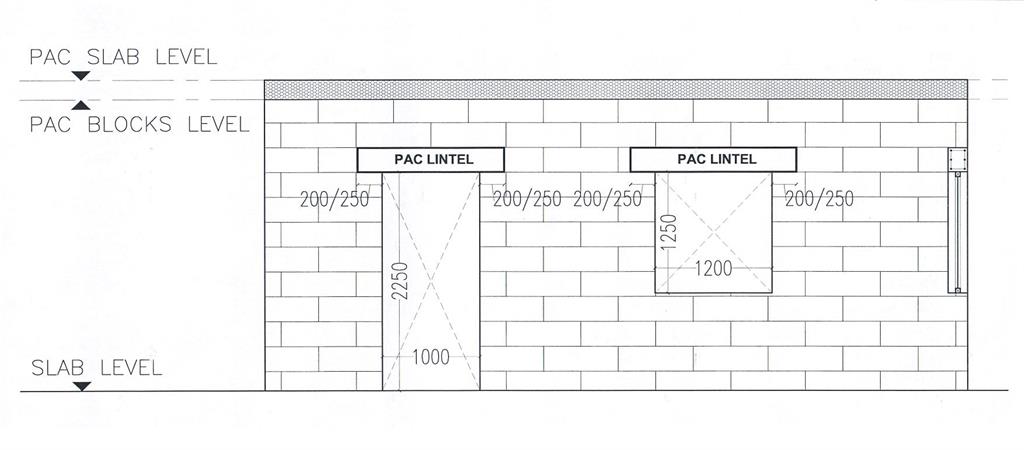

Product Dimensions
+
